How to Choose the Right Heat Transfer Fluid Filtration System

Using heat transfer fluid systems without filtration means operating a less than efficient system. Lost production time brought on by unscheduled downtime and increased energy expenditure causes this fall in performance.

Though heat transfer fluids are mostly stable when operated below their thermal stability limit and if not contaminated by agents from outside, they degrade over time in temperatures 150°F to 750°F (66°C to 399°C) and oxidize if in contact with atmospheric air. Overheating and contamination makes heat transfer surfaces impenetrable as contaminants deposit and spoil the surface. Sedimentation from solids causes blockage of pipes and valves and burning of heater elements.

How to Select the Right System

Choosing the right heat transfer fluid filtration system, therefore, is extremely important. Recommendations are broad with suggestions for side stream percentages to continually filter anywhere from 1% to 20% of the main flow. The industry is in favor of the higher percentages: 10% to 20% of the main flow. More likely the reason being the limited availability of maintenance personnel to change clogged filters. Filtering larger volumes with more filter element surface area result in filters staying unclogged for a longer time before needing changeouts.

Fluid Analysis before your Purchase

How contaminated the heat transfer fluid is will also determine the urgency to install a filtration system, and Liquid Process Systems (LPS) offers a fluid analysis at no charge when you purchase a filtration system from us. The higher percentage of contaminants, the quicker you need to clean-up! LPS fluid examination provides a benchmark for pre-filtration and also checks if the Acid Number is still within the useful range of “heat transfer fluid life.” Only then will filtration work to extend the useful life of the thermal fluid.

Our Side Stream Filtration Models

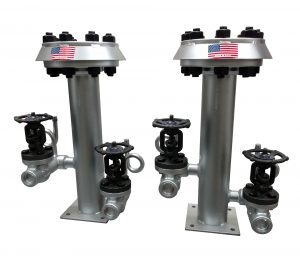

5 GPM HTF Series

5 GPM HTF Series

As there are two ways to a side stream heat transfer fluid system, we offer four basic models for side stream filtration. We help you to choose one that is best suited for your specific application and consider how much you want to do yourself when installing in the field. The four models: HTF housing only, Vector with isolation valves and pressure gauges, Vector with Bypass, and the Sentinel series that are complete stand-alone filtration systems with their own pumps and control panels. (Brochures on the LPS-Filtration.com website will show you more details and also illustrate the recommended installation schematics)

Depending on the total volume of heat transfer oil in the system, the recommended flow rate through the filter housings can flow as small as 5 GPM (24” High) and as large as 200 GPM (65” High).

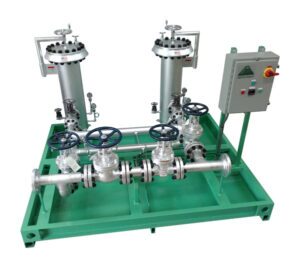

Vector Series 200 GPM with Bypass

Vector Series 200 GPM with Bypass

Use our thermal oil filtration systems to filter heat transfer fluids used for indirect heating of processes in industries – plastics, petrochemical, pharmaceutical, fiber, chemical manufacturing and others.

Your return on investment could be achieved within 6 to 12 months. A customer of ours realized an immediate saving of $40,000 immediately after installation. He projected annual savings of $22,000 a year from reduced maintenance and from replacing parts.

Call us at 704-821-1115 or visit lps-filtration.com for more information.
